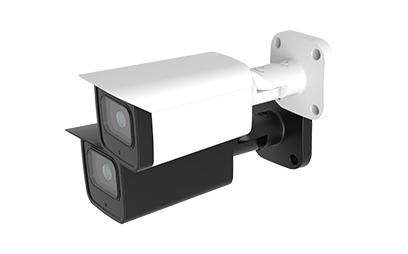

5MP IR Fixed-Focal Bullet Lite AI Network Camera
Model:IPC-B3511T-AS
- 5 MP 1/2.7" CMOS Sensor
- Support H.264+, H.265+
- The Max. IR LED distance is 60 m
- Support Perimeter Protection, Face Detection, SMD
- Support Built-in Mic & Speaker
- Supports max. 256 G Micro SD card
- 2.8mm fixed lens (3.6mm/6mm optional)
- 12 VDC/PoE power supply
- IP67 protection
Technical specifications
Camera | Image Sensor | 1/2.7” CMOS |
Max. Resolution | 5MP, 2880 (H) × 1620 (V) | |
Scanning System | Progressive | |
Electronic Shutter Speed | Auto/Manual 1/3 s–1/100,000 s | |
Min. Illumination | 0.002Lux(Color); 0.0002Lux (B/W); 0Lux (Illuminator on) | |
S/N Ratio | > 56 dB | |
Illumination Distance | IR Distance 60 m | |
Illuminator Control | Auto; Manual | |
Lens | Lens Type | Fixed-Focal |
Focal Length | 2.8mm/3.6mm/6.0mm | |
Max. Aperture | F1.6 | |
Field of View |
2.8mm Horizontal: 111°,Vertical:59°,Diagonal:134° 3.6mm Horizontal: 90°,Vertical:48°,Diagonal: 108° 6.0mm Horizontal: 57°; Vertical: 30°; Diagonal: 65° |
|
Iris Type | Auto | |
Intelligence | Smart Motion Detection | Yes |
Perimeter Protection | Intrusion,Tripwire(Support the classification of Vehicle, Human and Non-Motor) | |
Face Detection | Yes | |
Object Detection | NA | |
People Counting | NA | |
Heat Map | NA | |
AI Search | Work together with NVR | |
Video | Compression | H.264H; H.264M; H.264B; H.265 |
Smart Compression | H.264H+; H.264M+; H.264B+; H.265+ | |
Video Frame Rate | Main Stream: 5MP (1 fps–25/30 fps) | |
Sub Stream: D1 (1 fps–25/30 fps) | ||
Third Stream: 720P (1 fps–25/30 fps) | ||
Stream Capability | 3 Streams | |
Bit Rate Control | CBR/VBR | |
Video Bit Rate | H.264: 3 Kbps–20480 Kbps | |
H.265: 3 Kbps–20480 Kbps | ||
Day/Night | Color/B/W | |
BLC | Yes | |
HLC | Yes | |
WDR | 120 dB | |
White Balance | Yes | |
Gain Control | Auto/Manual | |
Noise Reduction | 3D NR | |
Motion Detection | OFF/ON (4 Areas, rectangular) | |
Image Rotation | 90°/180°/270° | |
Mirror | Yes | |
Privacy Masking | 4 Areas | |
Audio | Built-in Mic | Yes |
Built-in Speaker | Yes | |
Two-way talk | Yes | |
Audio Compression | G.711a; G.711Mu; G.726; G.726ASF | |
Alarm | Arming/Disarming | NA |
Sound Alarm | Yes | |
Light Alarm | NA | |
Alarm Event | Disconnection; IP Conflict; No SD Card; Capacity Warning; SD Card Error | |
Network | Network | RJ-45 (10/100 Base-T) |
SDK and API | Yes | |
Network Protocol | TCP/IP;UDP;HTTP;IGMP;ICMP;DHCP;RTP/RTSP;DNS;DDNS;FTP;NTP;PPPOE;UPNP;SMTP | |
Interoperability | ONVIF; CGI; P2P | |
User/Host | 20 (Total bandwidth: 80 M) | |
Storage | FTP; Micro SD card (support max. 256 G/FAT32) | |
Browser | IE: IE8 and later; Chrome; Firefox | |
Management Software | PC Software(SVMS), APP(Zanuo) | |
Mobile Client | IOS; Android | |
Port | Audio Input | 1 channel (optional) |
Audio Output | 1 channel (optional) | |
Alarm Input | 1 channel (optional) | |
Alarm Output | 1 channel (optional) | |
Power | Power Supply | 12V DC (±30%)/PoE (802.3af) |
Power Consumption | Basic: 2.5 W; Max: 5.2W | |
Environment | Operating Conditions | –30°C to +60°C (–22°F to +140°F)/Less than 95% RH |
Storage Conditions | –40°C to +60°C (–40°F to +140°F) | |
Protection Grade | IP67 | |
Structure | Casing | Metal |
Dimensions | 224 mm × 77mm × 76mm | |
Net Weight | 760g |
