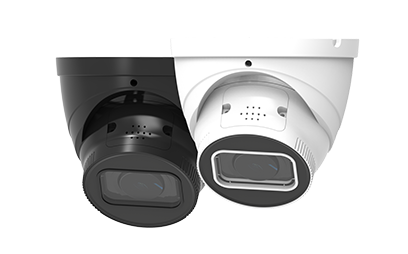

8MP IR Fixed-Focal Eyeball Lite AI Network Camera
Model：IPC-E3811M-AS
- 8 MP 1/2.8" CMOS Sensor
- Support H.264+, H.265+
- The Max. IR LED distance is 40 m
- Support Perimeter Protection, Face Detection, SMD
- Support Built-in Mic & Speaker
- Supports max. 256 G Micro SD card
- 2.8mm fixed lens (3.6mm/6mm optional)
- 12 VDC/PoE power supply
- IP67 protection
Technical specifications
| Camera | Image Sensor | 1/2.8” CMOS |
| Max. Resolution | 8MP,3840 (H) × 2160 (V) | |
| Scanning System | Progressive | |
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100,000 s | |
| Min. Illumination | 0.007Lux(Color); 0.0007Lux (B/W); 0Lux (Illuminator on) | |
| S/N Ratio | > 56 dB | |
| Illumination Distance | IR Distance 40 m | |
| Illuminator Control | Auto; Manual | |
| Lens | Lens Type | Fixed-Focal |
| Focal Length | 2.8mm/3.6mm/6.0mm | |
| Max. Aperture | F1.6 | |
| Field of View |
2.8 mm: Horizontal:107°; vertical: 56°; diagonal: 127° 3.6 mm: Horizontal:84°; vertical: 47°; diagonal: 97° 6 mm: Horizontal: 55°; Vertical: 29°; Diagonal: 63° |
|
| Iris Type | Auto | |
| Intelligence | Smart Motion Detection | Yes |
| Perimeter Protection | Intrusion,Tripwire(Support the classification of Vehicle, Human and Non-Motor) | |
| Face Detection | Yes | |
| Object Detection | NA | |
| People Counting | NA | |
| Heat Map | NA | |
| AI Search | Work together with NVR | |
| Video | Compression | H.264H; H.264M; H.264B; H.265 |
| Smart Compression | H.264H+; H.264M+; H.264B+; H.265+ | |
| Video Frame Rate | Main Stream: 8MP (1 fps–20 fps) | |
| Sub Stream: D1 (1 fps–25/30 fps) | ||
| Third Stream: 720P (1 fps–25/30 fps) | ||
| Stream Capability | 3 Streams | |
| Bit Rate Control | CBR/VBR | |
| Video Bit Rate | H.264: 3 Kbps–20480 Kbps | |
| H.265: 3 Kbps–20480 Kbps | ||
| Day/Night | Color/B/W | |
| BLC | Yes | |
| HLC | Yes | |
| WDR | 120 dB | |
| White Balance | Yes | |
| Gain Control | Auto/Manual | |
| Noise Reduction | 3D NR | |
| Motion Detection | OFF/ON (4 Areas, rectangular) | |
| Image Rotation | 90°/180°/270° | |
| Mirror | Yes | |
| Privacy Masking | 4 Areas | |
| Audio | Built-in Mic | Yes |
| Built-in Speaker | Yes | |
| Two-way talk | Yes | |
| Audio Compression | G.711a; G.711Mu; G.726; G.726ASF | |
| Alarm | Arming/Disarming | NA |
| Sound Alarm | Yes | |
| Light Alarm | NA | |
| Alarm Event | Disconnection; IP Conflict; No SD Card; Capacity Warning; SD Card Error | |
| Network | Network | RJ-45 (10/100 Base-T) |
| SDK and API | Yes | |
| Network Protocol | TCP/IP;UDP;HTTP;IGMP;ICMP;DHCP;RTP/RTSP;DNS;DDNS;FTP;NTP;PPPOE;UPNP;SMTP | |
| Interoperability | ONVIF; CGI; P2P | |
| User/Host | 20 (Total bandwidth: 80 M) | |
| Storage | FTP; Micro SD card (support max. 256 G/FAT32) | |
| Browser | IE: IE8 and later; Chrome; Firefox | |
| Management Software | PC Software(SVMS), APP(Zanuo) | |
| Mobile Client | IOS; Android | |
| Port | Audio Input | 1 channel (optional) |
| Audio Output | 1 channel (optional) | |
| Alarm Input | 1 channel (optional) | |
| Alarm Output | 1 channel (optional) | |
| Power | Power Supply | 12V DC (±30%)/PoE (802.3af) |
| Power Consumption | Basic: 2.5 W; Max: 5.2W | |
| Environment | Operating Conditions | –30°C to +60°C (–22°F to +140°F)/Less than 95% RH |
| Storage Conditions | –40°C to +60°C (–40°F to +140°F) | |
| Protection Grade | IP67 | |
| Structure | Casing | Metal |
| Dimensions | 110 mm × Φ122 mm | |
| Net Weight | 630g |
